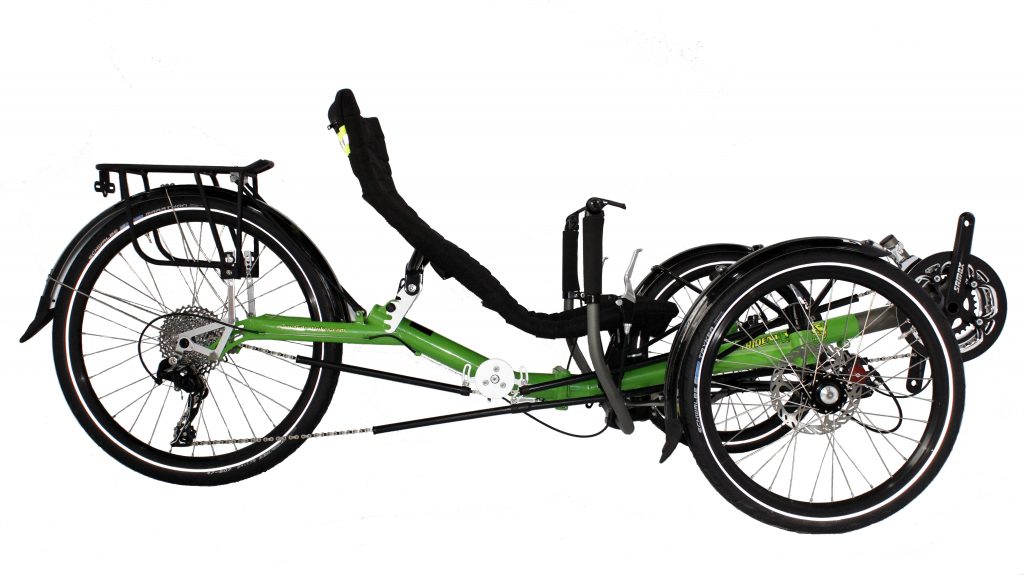

The Stowaway models have always been Trident Trikes #1 seller. The Stowaway line offers an incredible component mix at a price other manufacturers can’t touch..

Both Stowaway models use our Powder Coated  4130 Cro-Moly Tig Welded Frame, as well as Avid Brakes/ Promax Levers with Parking Brake, Double Wall Alloy Rims , and Ackerman Compensated Crossover Steering, but that is where the similarities end.

The Stowaway I is our Base Model.  It has 27 Speeds (3 x 9) It uses a Microshift Front Derailleur and a Microshift Marvo LE Rear Derailleur. Shifting is done with Microshift Gripshifters. The Crankset is a Square Taper 52/42/30 Triple WITH a Chainguard.. The Brakes are Avid BB5 Mechanical Disc Brakes. The Cassette is a SRAM PG-970 11-34.

The Stowaway II is our High Spec Model. It has 30 Speeds (3 x 10) It uses a Microshift Front Derailleur and a Microshift Marvo XE CNC Machined Rear Derailleur. Shifting is done with Bar End Shifters. The Brakes are Avid BB7’s.  The Cassette is a SRAM PG-970 11-36. The Crankset is a High End Forged Crankset with CNC Machined Rings, and an Integrated External Bearing  Bottom Bracket. The seat frame, handlebar and boom are Sandblasted and Anodized Aluminum Alloy. The Stowaway II is available with you choice of either 170mm Cranks or with 160 mm Short Cranks.  Beginning in July 2019, we will also have a few available with 152mm Crankarms. “Z” steering bars are also available for extremely short X Seams. Longer Booms ($50 Additional) will accommodate riders up to 51″ X Seam. Please order these items by phone.

Both Stowaway models include our Aluminum Mesh seat with 3 adjustable seating heights, and 4 adjustable seating angles . An optional adjustable neckrest is also now available on our accessories page. Both include an  improved Idler system that is as nice as anything on the market . Stowaway 2 also has adjustable handlebars. Kenda Kwest Tires are standard on the Stowaway 1 , Schwalbe Tryker Tires  are  standard on Stowaway 2 Models.  E Stowaway models use Schwalbe Big Apple Tires . The Rear Tire on the Stowaway 24 is a Schwalbe Marathon.

Also in Stowaway models– we don’t charge you for the extras!! Included with all models are a Rear Rack, a full set of 3 Fenders, a Safety Flag, a Mirror, and a Rear Light.

Stowaway Folding Trikes are shipped to you in 1 box it is 90% Assembled- . Lastly, you always have the option of picking up a fully assembled trike in Lincolnton, NC – about 30 miles NW of Charlotte, NC. However be aware if you choose this option, we will have to charge you 7% NC Sales Tax.

The Stowaway 1 is Available in Carolina Blue blue  Wolfpack Red red and for a limited time in Wasabi Green wasabi-green

The Stowaway 2 is Available in Carolina Blue blue  Wolfpack Red red and Wasabi Green wasabi-green

Available September 10, 2019  10th Anniversary Stowaway 2 26″ Limited Edition

In honor of the 10thAnniversary of our best selling Stowaway Trike, Trident Trikes is pleased to announce a 10thAnniversary Limited Edition Stowaway. There will only be 25 of these built. The 10thAnniversary Stowaway includes a 30 Speed Drivetrain (3 x 10) Featuring a 11-36 Cassette and Bar End Shifters, BB7 Brakes, Schwalbe Tryker Tires front, Schwalbe Marathon Rear.  A 26” Rear wheel with a Thru Axle is included as well as a  Forged Crankset (30/42/52) with External Bearings and  your choice of 170, 160 or 152 Crankarms.  It also features a flat fold Chro-Moly Frame. All Stowaway Trikes include a full set of Fenders, a Rear Rack, Rear Light, Accessory Mount, Mirror , and Safety Flag. The 10thAnniversary Stowaway is only available in Yellow. It is priced at $2199.00.

NEW FOR 2019  30 Speed Stowaway 2 with a 24″ Wheel

One of the most frequent questions we have gotten over the years is whether one of our Stowaway Trikes can take a bigger Rear Wheel.  Up until now this has not been possible. We are excited to announce the new Stowaway II 24” . We have designed an extension kit that will also be retrofittable to most Stowaways built in the last 5 years. This kit is superior to other extensions we have seen due to the fact that it uses an oversize 12mm Thru Axle for rear wheel stability and that it raises the dropout for the wheel so that the Trike can remain at the proper angle. The Stowaway II with the 24” wheel and standard 30 Speed has a gear inch range of  19.9” to 113.2” .

The new Stowaway II 24” is priced at  $ 2169 with your choice of 170mm or 160mm Crankarms. Beginning in July 2019, we will also have a few available with 152mm Crankarms.
Stowaway 24″ and 26″ Upgrade kits are available for any Stowaway Trike from 2015 to the present. You can check via your serial # which will begin with a number 15 or greater.  The kits include a 24″ or 26″ Wheel including a Tire and Tube, a 24″ or 26″ Frame extension, a 12mm Thru Axle, a new fender, and a set of longer rack rods. You will need to move your cassette from the old wheel to the new.

E Stowaway 2

Electric/Power Assist Trikes are the fastest growing segment of this industry. The E Stowaway is equipped with 20 Speeds (2 x 10) as well as everything else Stowaway 2 Trikes have including- Bar End Shifters, BB7 Brakes, Schwalbe Tires, Fenders, Rear Battery Rack, and Microshift’s top of the line Marvo XE drivetrain components. Also included is the Dapu  Geared Hub Motor System with both Throttle and  6 Power Assist  Modes with a large LCD display, and a 36V 13 AH Samsung Cell Lithium Ion Battery that will give you a range of about 20 Miles Electric Only and up to 60 miles per charge in the power assist modes.

The  E Stowaway is Available in Carolina Blue blue   Wolfpack Red red  and Wasabi Green wasabi-green



Pricing:

The Stowaway I $1629.00 + $125 Shipping






The Stowaway II with 170 mm Cranks 30 Speed $1949.00 + $125 Shipping






The Stowaway II with 160 mm Cranks 30 Speed $1949.00 + $125 Shipping






The Stowaway II with 152 mm Cranks 30 Speed $1949.00 + $125 Shipping






The Stowaway II 24″ with 170 mm Cranks 30 Speed  $2169.00 + $125 Shipping






The Stowaway II 24″ with 160 mm Cranks 30 Speed  $2169.00 + $125 Shipping






The Stowaway II 24″ with 152 mm Cranks 30 Speed  $2169.00 + $125 Shipping






Stowaway 24″ Frame Extension Kit for Existing Stowaways 2015-Present $339.00 + $20 Shipping



Stowaway 26″ Frame Extension Kit for Existing Stowaways 2015-Present $339.00 + $20 Shipping



The 10th Anniversary Stowaway II Yellow 30 Speed $2199.00 + $125 Shipping






The E Stowaway II with 170 mm Cranks 20 Speed $3499.00 + $125 Shipping






Shipping is $125.00 and is added to the total price in the cart. The Stowaway is 90% assembled (in 1 Box). Please call for shipping quotes to AK, HI, Canada or any foreign address.

Click Here for Manual, Warranty, Liability, Return Policy and Privacy info.

Click Here for Review.

Stowaway I Specs

COMPONENTS
Cranks Derailleurs Shifters Cassette Front hubs Chain Rims Spokes Tires Brakes Brake Levers
52/42/30 Alloy 165 mm Crankarms Microshift Rear/ Microshift Front Microshift Twist Shift SRAM PG970
11-34 9spd
Custom CNC Alloy Disc Hubs KMC Z9000 Double Wall Alloy SS 14g Kenda Kwest 100PSI Avid BB5
Disc Brakes (2)
Promax w/ Lock
DIMENSIONS EXTRAS
Track Width Wheelbase Average Length (Varies) Seat angle Seat Height Weight Rider weight limit Gear Inches X-Seam
Range
Rear Rack, Mirror, Safety Flag, Rear Light,Front & Rear Fenders, Alloy Pedals
31.5″ (80cm) 35.3″ (90cm) 43.3″ (1100 mm) 72 3”
(1850mm)
38-45 degrees 11.3/8″ to 13 3/8″ 38.8 LBS (17.6 KG) 275 Lbs 17.2”-92.1” 34 1/4″ to 45 3/8″ INCLUDED

Stowaway II Specs

COMPONENTS
Cranks Derailleurs Shifters Cassette Front hubs Chain Rims Spokes Tires Brakes Brake Levers
52/42/30 Forged w/
CNC Chainrings,
Integrated Bottom Bracket 170mm or 160mm Crank Arms
Microshift Marvo XE CNC Rear/ Microshift Front Bar End
Shifters
SRAM PG970
11-36 10spd
Custom CNC Alloy Disc Hubs KMC 10.93 Double Wall Alloy SS 14g Schwalbe Trykers 20 x 1.50 Avid BB7
Disc Brakes (2)
Promax w/ Lock
DIMENSIONS EXTRAS
Track Width Wheelbase Average Length (Varies) Seat angle Seat Height Weight Rider weight limit Gear Inches X-Seam
Range
Rear Rack, Mirror, Safety Flag, Rear Light, Front & Rear Fenders, Alloy Pedals
31.5″ (80cm) 35.3″ (90cm) 44.5″ (1130 mm) 72 3”
(1850mm)
38-45 degrees 11.3/8″ to 13 3/8″ 38.8 LBS (17.6 KG) 275 Lbs 15.6”-92.1” (20″ Wheel), 19.9″-113.2″ (24″ Wheel) 34 1/4″ to 45 3/8″ Included

E Stowaway II Specs

COMPONENTS
Cranks Derailleurs Shifters Cassette Front hubs Chain Rims Spokes Tires Brakes Brake Levers Electric System
Dapu Electric 52/42 Forged w/
CNC Chainrings and Chainguard,
Integrated Bottom Bracket 170mm Crankarms Std.
Microshift Marvo XE CNC Rear/ Microshift Front Bar End
Shifters
SRAM PG970
11-36 10spd
Custom CNC Alloy Disc Hubs KMC 10.93 Double Wall Alloy SS 14g (F)

SS 12g (R)

Schwalbe Big Apple 20×2.00



Avid BB7
Disc Brakes (2)
Electric Cutoff Levers w/ Lock 36v 350 W Dapu Geared Hub Motor w/ Throttle and 6 Assist Modes
DIMENSIONS EXTRAS BATTERY
Track Width Wheelbase Average Length (Varies) Seat angle Seat Height Weight Rider weight limit Gear Inches X-Seam
Range
BatteryRack, Mirror, Safety Flag,  Front & Rear Fenders, Alloy Pedals 36V 13 AH Lithium Ion w/ Samsung Cells
31.5″ (80cm) 35.3″ (90cm) 44.5″ (1130 mm) 72 3”
(1850mm)
38-45 degrees 11.3/8″ to 13 3/8″ 56 LBS (25.4 KG) 275 Lbs 23.1”-88.3” 34 1/4″ to 45 3/8″ Included Battery Charger Included
