Terrain

Terrain Folding Fat Tire Trike

Fat 1 for web     IMG_1548



IMG_3568Fat M








One of the hottest trends in the market- both 2 and 3 wheelers- has been Fat Tires. And who wouldn’t want one? They are a blast to ride on rough roads, trails and sand. In all honesty though for most of us, it’s not going to be your only ride. In addition, because of the nature of what you will be riding a Fat Trike on- your Fat Tire trike is likely to take more of a beating than your shiny pampered road trike.

With this in mind we set out to design a Fat Trike that would meet certain criteria:

Affordable:  Again- this is not likely to be your only Trike, is going to take more of a beating than your other Trike, going to ride in Mud, Snow, Sand etc- so you don’t want to invest a fortune in it.

Foldable:  Since our premise is that it will be sharing space in your garage with your rides, and the fact that Fat Tire Trikes are just BIG- it would be nice if it took up a little less space.

Unsuspended: There are 2 schools of thought on this obviously, and of the Fat Tire Trikes in production now, ICE & Sun, use suspension, Azub, and we do not. Here is our reasoning- First they are Fat Tires (duh) ! You are running these at approximately 10PSI- this gives you all the suspension you need. Secondly suspension- especially nice suspension- adds a lot of cost, weight, and complexity.

Fun: Fat Tire Trikes are great fun to ride, but if you have ridden all the brands- you will definitely realize some steer and ride way better than others. Great handling and comfort is a must

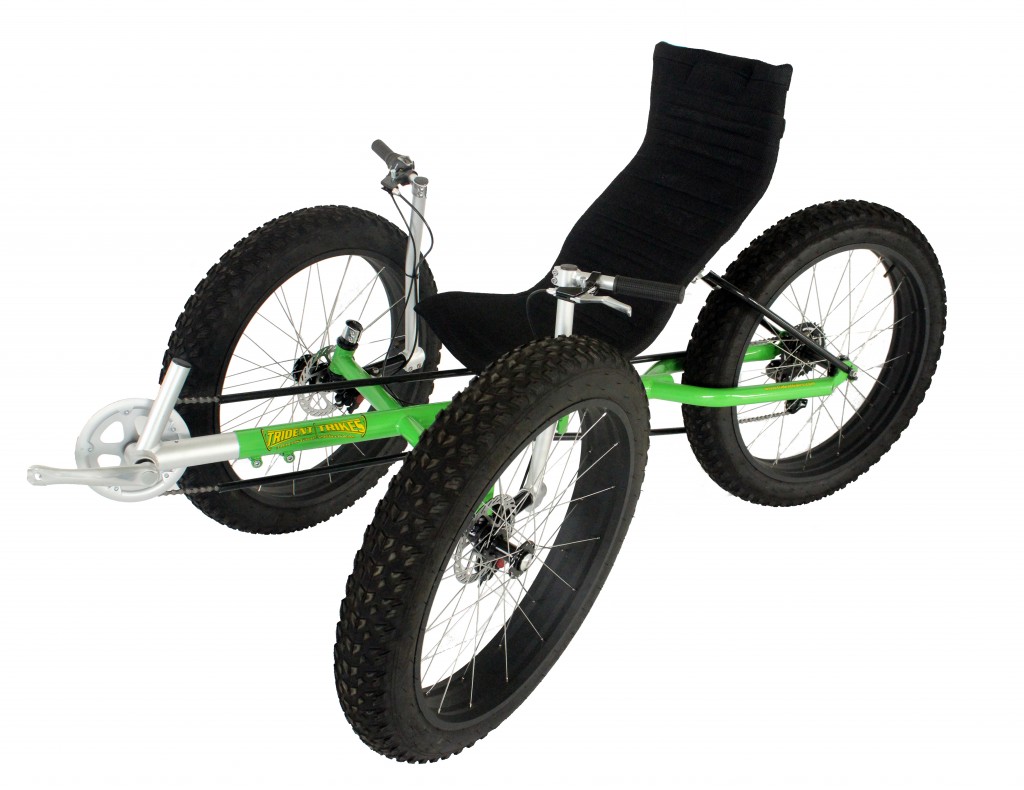

We are pleased to introduce our FOLDABLE Terrain 20 and Terrain 26 Fat Tire Trikes.

The Terrain models are available with either 3  20” x 4″ Wheels or 3 26” x 4″  Wheels. Terrain Models feature a powder coated , foldable Chro- Moly frame. Terrain models will come equipped with our signature Mesh Seat with 4 adjustable angles and 3 height positions. X Seam Ranges have also been increased – the Terrain will accommodate riders with X Seams from 34 ¼” to 47 ¼” (900mm-1200mm ). We can also accommodate even larger X Seams with an XL Boom ($40 additional) . Rounding out the features are Avid BB5 Disc Brakes with locking Parking Brake Levers and a 7 Speed Shimano Drivetrain with a Twist Shifter. The Terrain 20 has a weight limit of 275 Lbs. The Terrain 26 has a weight limit of 325 Lbs.

An Electric Power Assist Version of the Terrain 20 is available in limited quantities. This version uses a Dapu Systems 350w  Geared Hub Motor System with 6 Power Assist Modes and a Throttle,  a Rack Mounted 36V 15 AH Lithium Battery, and Display.

An Electric Power Assist Version of the Terrain 26 is available in limited quantities. This version uses a Dapu Systems 500w  Geared Hub Motor System with 6 Power Assist Modes and a Throttle,  a Rack Mounted 48V 20AH Lithium Battery, and Display.  The E Version gets Kenda Blackwall E Rated Fat Tires

Due to many requests Terrain 26 is also available with factory installed 21 speeds

A 21 Speed Upgrade kit is also available as an option.  Its consists of a 22/32/42 Triple Crankset, a wider Bottom Bracket, a Microshift Front Derailleur, a Shimano 3 Speed Revoshifter,  and Cabling with Cable Housing.  21 Speed Upgrade Kit gives you a Gear Inch Range of 18.5 to 85.7 on a Terrain 26,  13.8 to 58.7 on a Terrain 20.

Rear Racks are also  available  for both Terrain 20 and 26

For customers that want to put a Mid Drive Motor on your Trident Terrain- we recommend using a steering damper as some installations will cause a wheel wobble. We have designed one specifically for the Terrain, It is substantially nicer than ones you will find on Amazon or eBay. The steering damper kit is available below.

Terrain Trikes are shipped to you in 1 box- it is 70% assembled. You also always have the option of picking up a fully assembled trike in Lincolnton, NC- about 30 miles NW of Charlotte, NC

Terrain 20 & Terrain 26 are available in Wasabi Green, Carolina Blue  and Wolfpack Red.

Click Here for Review.

Terrain 20  7 Speed $1599.00 + $125 Shipping

In Stock



Terrain 26  7 Speed $1699.00 + $125 Shipping

In Stock



Terrain 26  21 Speed $1899.00 + $125 Shipping

In Stock



E Terrain 20 350W 36V  $3499.00 + $145 Shipping

In Stock



E Terrain 26 500W 48V 20AH Battery  $3799.00 + $145  Shipping

In Stock



21 Speed Upgrade Kit For Terrain $229 + $13 shipping

In Stock



Fender Set (F & R) for Terrain 20 $149 + $18 shipping

In Stock



Fender Set (F & R) for Terrain 26 $169 + $21 shipping

In Stock



Rear Rack for Terrain 20 $69 + $17 Shipping

In Stock



Rear Rack for Terrain 26 $69 + $17 Shipping

In Stock



Steering Damper Kit for all Terrain Models $59 + $10 Shipping

In Stock

 Steering Damper Installation

Deluxe Seat Cover w/ Removable Side Pocket $199.00 + $14 Shipping

In Stock



Shipping: is $125.00 and is added to the total price in the cart. The Terrain is 70% assembled (in 1 Box). Please call for shipping quotes to AK, HI, Canada or any foreign address.

Click Here for Manual, Warranty, Liability, Return Policy, and Privacy Policy.
Click Here for Terrain Assembly Manual
Click Here for 21 Speed Upgrade Installation Manual
Dapu 600E Operating Overview for E Terrain Models

Terrain 20 Specs

COMPONENTS
Cranks Derailleurs Shifters Cassette Front hubs Chain Rims Spokes Tires Brakes Brake Levers
36T Single Ring Crankset 170 mm Crankarms Shimano Tourney Rear Shimano Revoshift Shimano
14-34            7 Speed
Custom CNC Alloy Disc Hubs KMC Z50 Alloy Fat Tire 20 x 4.0 SS 14g 20 x 4.0 Avid BB5
Disc Brakes (2)
Promax w/ Lock
DIMENSIONS EXTRAS
Track Width Wheelbase Average Length (Varies) Seat angle Seat Height Weight Rider weight limit Gear Inches X-Seam
Range
Safety Flag, Alloy Pedals
31.5″ (80cm) 35.3″ (90cm) 43.3″ (1100 mm) 74 3”
(1885mm)
38-45 degrees 17 7/8″ to
19 7/8″
49.8 LBS (22.6 KG) 275 Lbs 19.8”-48.0” 34 1/4″ to 47 3/8″ INCLUDED

Terrain 26 Specs

COMPONENTS
Cranks Derailleurs Shifters Cassette Front hubs Chain Rims Spokes Tires Brakes Brake Levers
32T Single Ring Crankset 165 mm Crankarms Shimano Tourney Rear Shimano Revoshift Shimano 14-34
7 Speed
Custom CNC Alloy Disc Hubs KMC X50 Alloy Fat Tire 26 x 4.0 SS 14g Kenda Juggernaut 26 x 4.0 Avid BB5
Disc Brakes (2)
Promax w/ Lock
DIMENSIONS EXTRAS
Track Width Wheelbase Average Length (Varies) Seat angle Seat Height Weight Rider weight limit Gear Inches X-Seam
Range
Safety Flag, Alloy Pedals
31.5″ (80cm) 35.3″ (90cm) 44.5″ (1130 mm) 77.3”
(1965mm)
38-45 degrees 20 7/8″ to 22 7/8” 52.8 LBS (23.5 KG) 325 Lbs 25.8”-62.8” 34 1/4″ to 47 3/8″ INCLUDED
