Tomcat

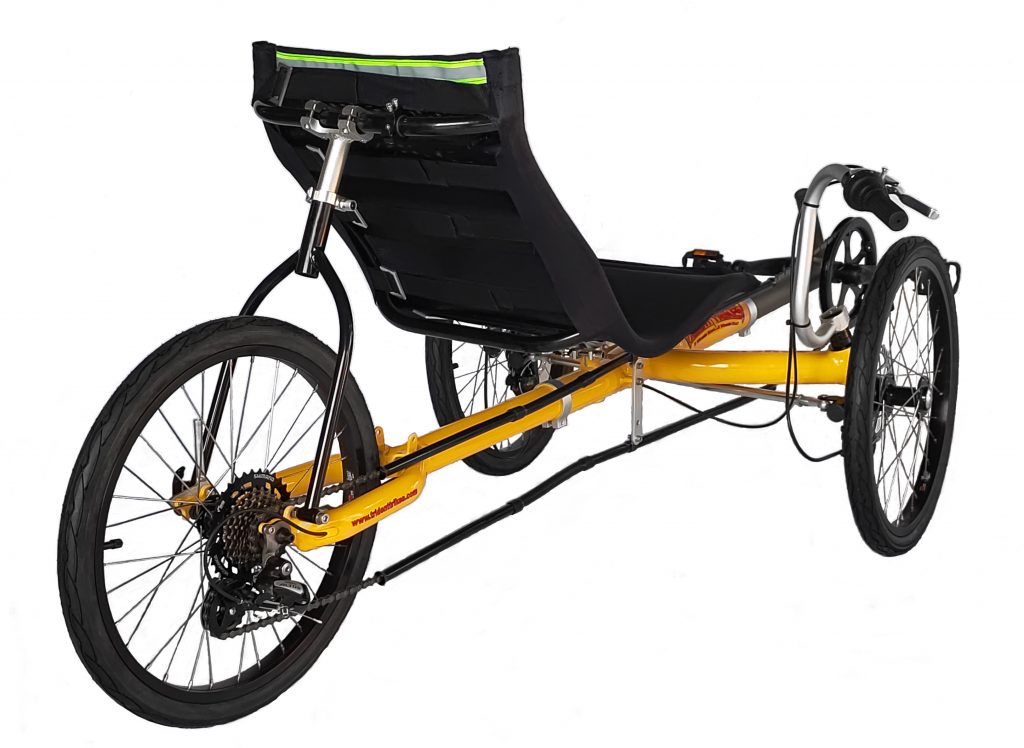

Tomcat  is a no compromise Lightweight Entry Level  Trike. It uses an Aluminum Non Folding frame, however the frame can be separated into 2 pieces for transport. Don’t let the price fool you though- Tomcat is packed full of features that you won’t see in other brands at twice the price. Tomcat addresses a niche that is sorely missing in the Recumbent Trike industry. It will fit shorter people with X Seams as low as 32″. It weighs an incredible 32 1/2 Lbs so it is easy to lift.  Some notable features of Tomcat include Trident’s exclusive Aluminum Seat that adjusts for both height– 14 5/8 Inches (370mm) to 16 1/2 ” (420 mm) and angle (42-52 degrees), an Aluminum Powder Coated Frame, an Anodized Aluminum Boom, Aluminum Seat Frame with Water Bottle Cage attachment bracket, Shimano 7 Speed Deraileur/Shifter, Mechanical Disc Brakes, a Safety Flag and Alloy pedals- all STANDARD.

The Base Price of a Tomcat is $1399.00!

Tomcat Enviolo/380 is our Upgraded Tomcat model for those who would rather not have a derailleur system. It features the Nuvinci /Enviolo TR system . The TR System is far superior to the cheaper CT system -310% Gear Range  for the CT vs 380% for the TR. In addition the TR system can handle more torque which is important if you decide to install  a Mid Drive Motor in the future.  Schwalbe Big Apple Tires and Avid BB5 Brakes are standard . Tomcat 380 retails for $1899.00

E Tomcat is our Electric Power Assist Version of our Tomcat model. It is ideal for a shorter rider or somebody that does not need a folding trike. It comes equipped with the Dapu 350W 36V Hub Motor system with 6 Power Assist setting plus a Throttle. The battery is a rack mounted 36V 15AH Lithium Ion Battery. The E Tomcat retails for $3249.00

An accessory kit with a full set of 3 fenders and a sturdy rear rack is available for $159.00 ($10 more for Big Apple Tire Version)

A Deluxe Accessory Kit which includes 3 Fenders , Rear Rack, Accessory Mount, Rear Light and Mirror is available for $189.00 ($10 more for Big Apple Tire Version)

A Tomcat 21 Speed Upgrade kit is also available which includes a Samox 52/42/30 Crankset with 165mm Crankarms including Bottom Bracket,  a 3 Speed Shimano Revoshifter, a Microshift Front Derailleur, Cable Housing, and a Cable Noodle to go through the boom , This kit sells for $229.00



All Tomcats have Direct Steering. It is only available in Yellow. Tomcats come 75% assembled and adjusted. They are not “kits” like many other brands of Trikes.

Standard Boom length on all Tomcats gives you an X- Seam range of 34” – 44”
Long Booms are available for $60 more which will give you an X Seam Range of 36 1/4 – 50 1/4 “

In addition your standard boom can be cut down to accommodate X Seams as low as 32 ½” with the use of 152mm Crankarms which we have available for Tomcat . Please call or email if you need these.

For shipping quotes to AK, HI and outside the US, please email us
Tomcat Steering Bumper Installation
NuVinci 380 Manual
Tomcat Assembly Manual
Click Here for Review.

Pricing
Shipping Added to Total Price in Cart

Tomcat $1399.00 + $125 Shipping

In Stock



Tomcat Enviolo/380 $1899.00 + $125 Shipping

In Stock



E Tomcat $3249.00 + $145 Shipping

In Stock



Standard Accessory Kit for Tomcat $179.00 + $16 Shipping



Rear Rack for Tomcat $69.00 + $15 Shipping



Tomcat Deluxe Seat Cover w/ Removable Side Pocket $199.00 + $14 Shipping



Deluxe Accessory Kitfor Tomcat $209.00 + $16 Shipping



Standard Accessory Kit for Big Apple Tires (Tomcat) $189.00 + $16 Shipping



Tomcat Regular Fender Set F & R $119.00 + $15 Shipping



Big Apple F&R Fenders $129.00 + $15 Shipping



Tomcat 21 Speed Upgrade Kit $229.00 + $12 Shipping



Tomcat Specs

COMPONENTS
 Cranks Rear Derailleur Shifter Cassette Front hubs Chain Rims Spokes Tires Brakes Brake Levers
42T Alloy Crankset w/ 165mm Crankarms  Shimano Altus   Shimano Revoshift Shimano 14-34
7 Speed
Custom CNC Alloy Disc Hubs KMC Z9000 Single Wall Alloy Stainless 14g Kenda 100PSI Novich NWQ-1
Disc Brakes
Promax w/ Lock
DIMENSIONS EXTRAS
Track Width Wheelbase Average Length (Varies) Seat angle Weight Rider weight limit Gear Inches X-Seam
Range
Rear Rack, Mirror, Lights
(F & R) Fenders
(F & R)
Pedals
29.25″ (75cm) 32″ at Front Wheels

37-39″ at top of handlebar

39.4″
(1000 mm)
78 3/4”
(2000mm)
42-52
degrees
32.5LBS (14.7 KG) 275 Lbs 24.2-58.7 34 1/4- 45 3/4” OPTIONAL Alloy Included

Tomcat 380 Specs

COMPONENTS
 Cranks Rear
Hub
Shifter Cassette Front hubs Chain Rims Spokes Tires Brakes Brake Levers
42T Alloy Crankset w/ 165mm Crankarms  Nu Vinci TR Hub  Nu Vinci Shifter 17T Sprocket Custom CNC Alloy Disc Hubs KMC Z9000 Single Wall Alloy Stainless 14g Schwalbe Big Apple 20 x 2.0 Avid BB5 Mechanical Disc Promax w/ Lock
DIMENSIONS EXTRAS
Track Width Wheelbase Average Length (Varies) Seat angle Weight Rider weight limit Gear Inches X-Seam
Range
Rear Rack, Mirror, Lights
(F & R) Fenders
(F & R)
Pedals
29.25″ (75cm) 32″ at Front Wheels

37-39″ at top of handlebar

39.4″
(1000 mm)
78 3/4”
(2000mm)
42-52
degrees
36.7 LBS (16.6 KG) 275 Lbs 23.1-83.1″ 34 1/4- 45 3/4” OPTIONAL Alloy Included

E Tomcat Specs

COMPONENTS
 Cranks Rear
Hub
Shifter Cassette Front hubs Chain Rims Spokes Tires Brakes Brake Levers
46T Torque Sensing Crankset w/ 165mm Crankarms  Dapu 36v Hub Motor  Microshift Twist 12-32 8 Speed Custom CNC Alloy Disc Hubs KMC Z9000 Single Wall Alloy Stainless 14g Schwalbe Big Apple 20 x 2.0 Avid BB5 Mechanical Disc E Brake w/ Lock
DIMENSIONS EXTRAS
Track Width Wheelbase Average Length (Varies) Seat angle Weight Rider weight limit Gear Inches X-Seam
Range
Rear Rack, Mirror, Lights
(F & R) Fenders
(F & R)
Pedals
29.25″ (75cm) 32″ at Front Wheels

37-39″ at top of handlebar

39.4″
(1000 mm)
78 3/4”
(2000mm)
42-52
degrees
55.7 LBS (25.2KG) 275 Lbs 23.1-83.1″ 34 1/4- 45 3/4” OPTIONAL Alloy Included
